Home > Products > Electrical Switchgear > Gas Insulated Switchgear > 11kv Sf6 Gis Gas Insulated Switchgear

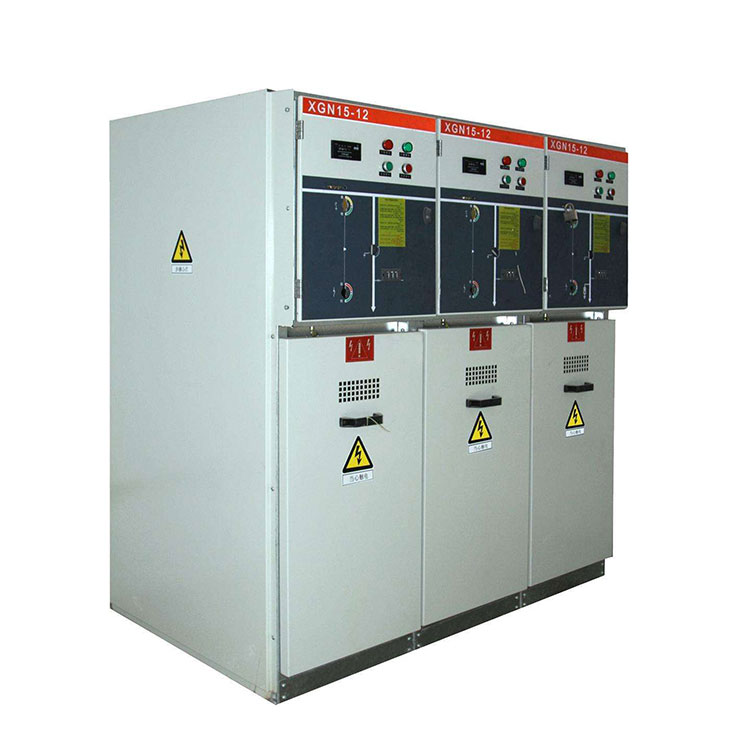

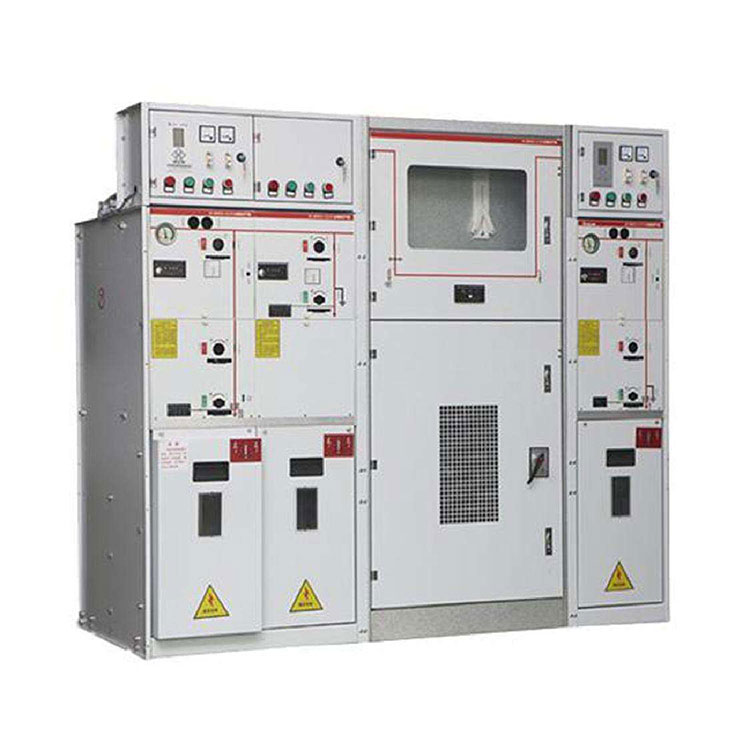

11kv Sf6 Gis Gas Insulated Switchgear
Conso Electrical Science and Technology Co., Ltd humbly presents itself as a manufacturer and supplier committed to producing 11kv SF6 GIS gas insulated switchgears of the utmost quality. Since our inception in 2006, our primary focus has been on the manufacturing of medium voltage electrical transformer and Electrical Switchgear, a specialization we have diligently upheld over the years. Our approach to crafting 11kv SF6 GIS gas insulated switchgears is firmly rooted in the fundamental principles of High-quality standards at competitive rates. We're looking for franchisees from every corner of the world.
Send Inquiry
Product Description
11kv Sf6 Gis Gas Insulated Switchgear Introduction
|
C: Cable Switch |
F: Cable Switch with Fuse |
||
|
De: Director Cable Connection with Earthing |
V: Vacuum Circuit Breaker |
||
|
D: Director Cable Connection |
M: Metering Module (air insulation) |
||
|
Weight: |
150kg for one cell (C, F, D, De, V) |
Dimension |
1336(H)*375(W)*751(D) |
|
250kg for a M cell |
1636(H)*375(W)*751(D) |
||
Technical Value:
|
Item |
Unit |
Value |
|
|
Rated Insulation Level |
1 Min Power Frequency (Phase to earth) |
KV |
42/48 |
|
Lighting Impulse withstand voltage (Phase to earth) |
KV |
75/85 |
|
|
Rated Voltage |
KV |
12 or 24 |
|
|
Rated Frequency |
Hz |
50/60 |
|
|
Rated Current |
A |
630/1250 |
|
|
Rated Current (Horizontal Busbar) |
A |
1600/3150 |
|
|
Rated Current (Vertical Busbar) |
A |
630 |
|
|
Rated Short time Withstand Current（4S） |
KA |
16/20/25/31.5 |
|
|
Rated Peak Withstand Current |
KA |
105/176 |
|
|
Protection Level |
|
SF6Cell IP67 |
|
|
Enclosure IP3X |
|||
CONSO·CN11kv sf6 gis gas insulated Switchgear in Process:
|
The SF6 Single Cell |
The SF6 Common Cell |
The Metal Plate |
The Complete Product |
Outdoor Protective Cover
CONSO·CN11kv sf6 gis gas insulated Switchgear Workshop:
|
Welding area |
SF6 cell assemble area |
Daily Clean Up |
11kv sf6 gis gas insulated Switchgear in Assembling
11kv sf6 gis gas insulated Switchgear Producing Equipment:
11kv sf6 gis gas insulated Switchgear FAQ
1.Do you sell spear parts for11kv sf6 gis gas insulated Switchgear?
A: yes, we sell the upper compartment independently to clients.
2.Where is your factory located?
A: the address of my factory is 391 Jing Qi Road Yanpan industry Park, Yueqing City, Zhejiang Province, China. Zip Code:325600
3.How long is the delivery time to11kv sf6 gis gas insulated Switchgear?
A: normally, it needs 10 to 18 days to produce one set11kv sf6 gis gas insulated Switchgear ,since the solution is different among clients.
4.What is your payment term?
A: we accept 30% T/T for the advance payment, 70% T/T or L/C before product shipping.
