Reduced Risk to Residents:
11 0.433 kv 3 phase pole 160 kva transformers reduce the risk of harm to residents. When 11 0.433 kv 3 phase pole 160 kva transformers are placed on the ground, they must be enclosed within a protective area because people unaware of the risks can access that area. 11 0.433 kv 3 phase pole 160 kva transformers installed at an elevated height are less likely to be tampered with or damaged by local residents.
Compact Design:
11 0.433 kv 3 phase pole 160 kva transformers are highly compact and do not occupy valuable ground space. If you are working on a small parcel of land under development, designating that space as a ground level substation may not be practical. With 11 0.433 kv 3 phase 160 kva transformers mounted on poles, you don't have to worry about consuming ground space.

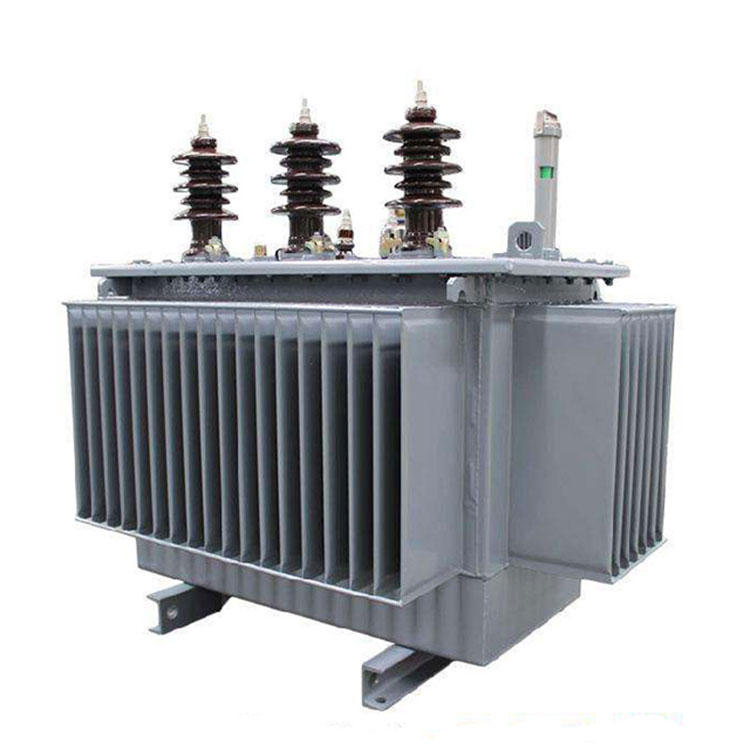

Rated Capacity: | 160 kVA; |
Mode: | S13-M.R-160/11/0.433; |
Primary Voltage: | 11kV; |
Secondary voltage: | 433V; |
No Loading Loss: | 280 W ±10%; |
Loading Loss: | 2200/2310 W ±10% ; |
Cooling method: | Oil Natural Air Natural; |
Vector Group: | Dyn5, Dyn11, Yyn0; |
Insulation Material: | 25# 45# Mineral Oil; |
Short Circuit Current: | ≤0.60%. |
![]()
