The transformer base should be no less than 2.5 meters above the ground, and all metal components should be grounded.
The height of exposed conductive parts above the ground should be at least 3.5 meters.
The transformer base should be securely fastened to the platform, and the upper part should be fastened to the pole using fittings.
Both the upper and lower leads of the transformer should be made of multi-strand insulated wire. The high-voltage dropout fuse should be at a height of no less than 4 meters above the ground, and the distance between the central phases and the edge phases of the high-voltage fuse should be no less than 0.5 meters. The angle between the centerline of the high-voltage fuse porcelain and the vertical line should be 250-300 degrees.
"No Climbing, High Voltage Danger!" warning signs should be hung.
Rated Capacity: | 100 kVA; |
Mode: | D11-M-100 or depends; |
Primary Voltage: | 6350V, 7620V, 11547V, 17321V, 30000V, 33000V; |
Secondary voltage: | 120V, 230V, 460V,or depends; |
Cooling method: | ONAN; |
No Loading Loss: | 210 W±10%; |
Loading Loss: | 850 W±10%; |
Phase Number: | Single Phase; |
Temperature Rise: | 60K/65K or depends; |
Winding Material: | 100% Copper. |
![]()

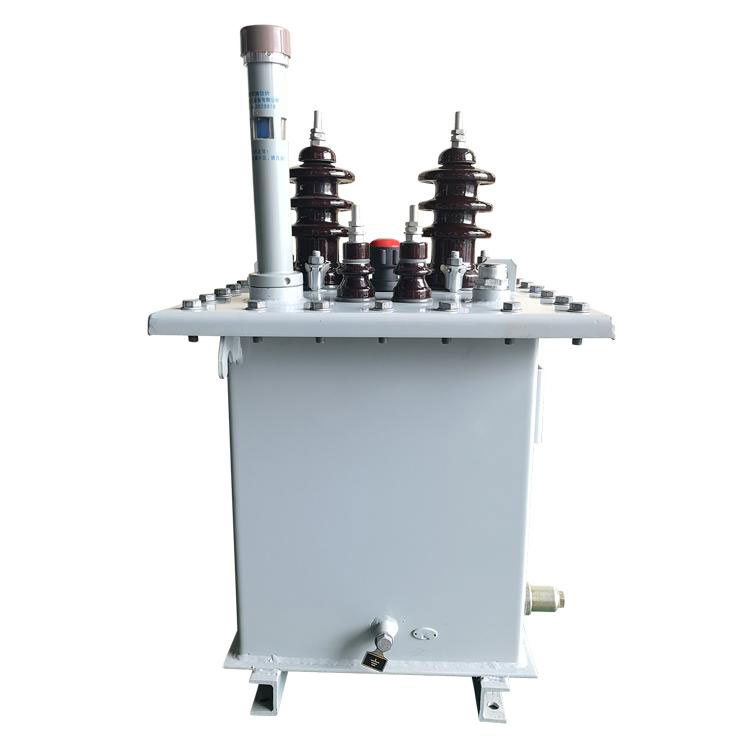

Front Mounted
|
![]()

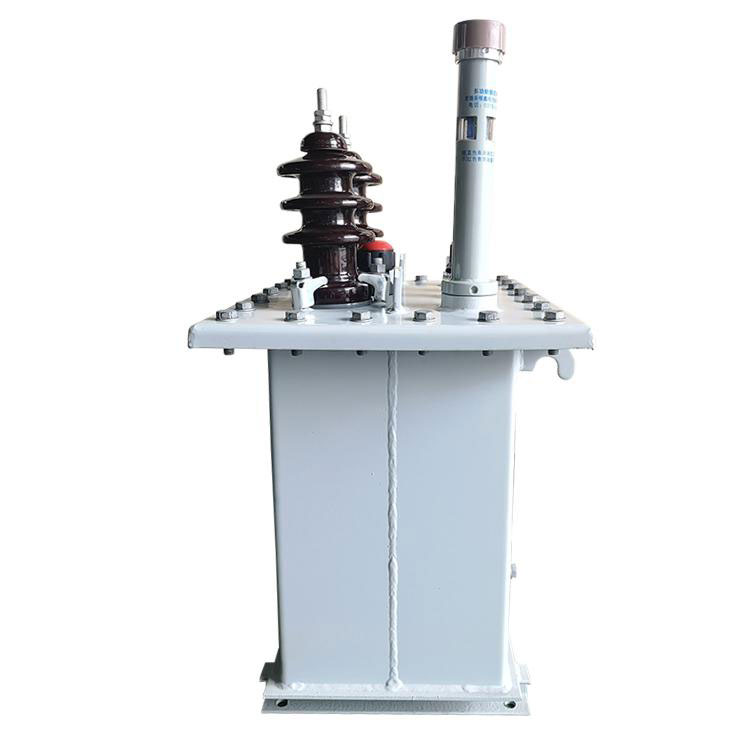

Side Mounted
|
![]()
Single Phase Transformer
|
![]()
Single Pole Mounted
|
