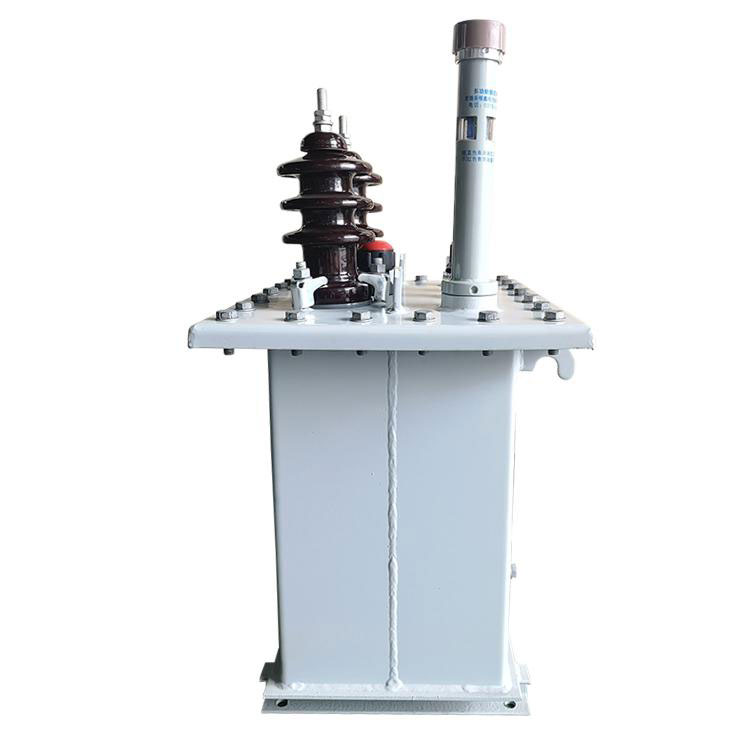

10 Kva Pole Mounted Type Transformer Single Phase
  • 10 Kva Pole Mounted Type Transformer Single Phase10 Kva Pole Mounted Type Transformer Single Phase
  • 10 Kva Pole Mounted Type Transformer Single Phase10 Kva Pole Mounted Type Transformer Single Phase

10 Kva Pole Mounted Type Transformer Single Phase

Conso Electrical Science and Technology Co., Ltd. is as a distribution pole mounted transformer producer to fit the demands of industry, commerce, agriculture. 10 kva pole mounted type transformer single phase is an example to fit the household power demands. The company has an experienced production team that is able to produce 10 kva pole mounted type transformer single phases in a large scale and solid quality. We has the experience to support single phase pole mounted transformers to State Grid Inner Mongolia Branch. We wish to build a strong relationship with clients from oversea power grid corporation.

Send Inquiry

Product Description

Video



Economic Operation 10 kva pole mounted type transformer single phase:


In the process of promoting the application of single-phase transformers, it is important to accumulate experience in single-phase distribution technology, enhance adaptability, and improve efficiency. When implementing this, consider the following:

For residential single phase electrical consumers, it is advisable to use single phase transformers for distribution. For three-phase electrical consumers, a combination of single-phase transformers can be pole-mounted to provide three-phase transformer distribution.

For agricultural loads with strong seasonal variations, consider using the mother-son transformer configuration. This means using three-phase transformers during seasons with power demand and switching to lower-capacity single-phase transformers during seasons with no power demand to reduce no-load losses.

Emphasize the retrofitting of existing distribution networks. Extend the existing three-phase high-voltage lines and add single-phase transformers at the low-voltage end, enabling the efficient utilization of low-voltage lines and cost savings. Additionally, diversify the range of single-phase transformers, research and develop prefabricated small-scale, single-phase box-type three-phase combination transformers, and dry-type single-phase box transformers. This will facilitate their use in various scenarios, including newly constructed cable communities, promoting the widespread adoption of single-phase distribution technology.


10 kva pole mounted type transformer single phase Parameter:


Rated Capacity:  10 kVA;
Mode:  D11-M-10 or depends;
Primary Voltage:  6350V, 7620V, 11000V, 30000V, 33000V;
Secondary voltage:  120V;220V,240V, or depends;
Insulation type:  oil immersed;
No Loading Loss:  36 W±10%;
Loading Loss:  120 W±10%;
Phase Number:  Single Phase;
Rated Frequency:  50 or 60Hz;
Winding Material:  100% Copper.


CONSO·CN 10 kva pole mounted type transformer single phase Detail:


Front Mounted
Side Mounted
Single Phase Transformer
Single Pole Mounted


CONSO·CN 10 kva pole mounted type transformer single phase Workshop:


Winding Workshop

Coil Drying Area

Oil Filling Area

Finished Product Area


10 kva pole mounted type transformer single phase Testing Center:



10 kva pole mounted type transformer single phase Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine


CONSO·CN 10 kva pole mounted type transformer single phase Ready to Ship:



Package method:


Wooden Box

Steel Structure
